Installation of DC cable trays in factory buildings

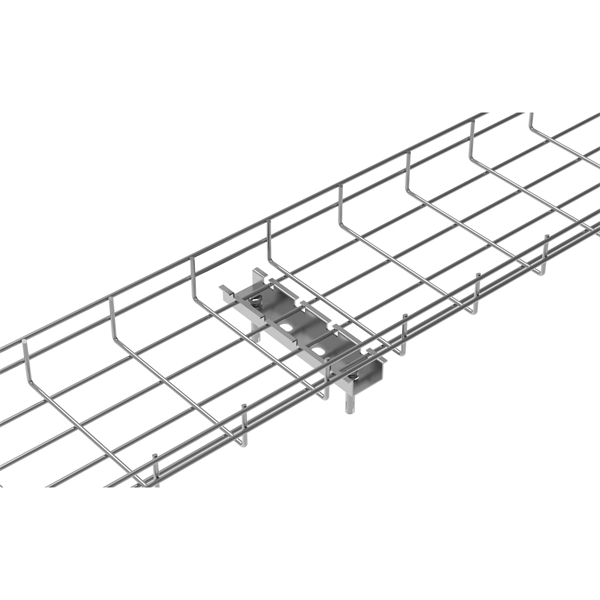

Proper installation of DC cable trays in factory buildings ensures safe, organized, and maintainable electrical systems while accommodating future expansion and environmental challenges.Material SelectionChoosing the right material is critical for durability and safety. Common options include:Steel: Pre-galvanized or hot-dip galvanized for corrosion resistance, suitable for most industrial environments ( ).Stainless Steel (AISI 316L): Offers superior corrosion resistance, especially in humid or chemically aggressive environments ( ).Aluminum: Lightweight, corrosion-resistant, and easy to form, ideal for areas with atmospheric exposure ( ).Fiberglass Reinforced Plastic (FRP): High resistance-to-weight ratio and excellent corrosion resistance, suitable for highly corrosive environments ( ).Planning and LayoutA well-designed layout ensures safety, efficiency, and future scalability:Route Planning: Conduct a detailed site survey to map the factory layout, existing electrical systems, and potential obstacles ( ).Load and Capacity Analysis: Calculate the total electrical load and select tray sizes that can support current and anticipated cable volumes ( ).Spatial Planning: Avoid interference with machinery, HVAC, and other plant systems. Maintain proper clearance for maintenance and safety ( ).Future-Proofing: Design with expansion in mind, allowing additional cables or upgrades without major modifications ( ).Installation StepsMark the Route: Clearly mark the tray path on walls, ceilings, or floors before drilling ( ).Select Tray Type: Ladder trays for airflow and heavy cables, perforated trays for lighter loads, and solid-bottom trays for sensitive or high-voltage DC cables ( ).Sizing: Ensure tray width and depth accommodate all cables with proper spacing to prevent overheating ( ).Mounting Supports: Use brackets, wall mounts, or suspended supports spaced 1.5–3 meters apart depending on tray type and load ( ).Tray Alignment: Install trays level and straight, using connectors and fittings for bends, T-junctions, or height changes ( ).Cable Laying: Organize DC cables by voltage and function, using cable ties or straps. Leave slack for thermal expansion and future adjustments ( ).Safety and Compliance: Follow local electrical codes, maintain proper grounding, and ensure separation from AC lines to prevent interference ( ).Maintenance and AccessibilityEnsure trays are easily accessible for inspection, repair, and future upgrades ( ).Periodically check for corrosion, mechanical damage, or loose fittings.Keep documentation of tray layout and cable routing for maintenance teams.Additional ConsiderationsEnvironmental Factors: Consider exposure to moisture, chemicals, or dust when selecting materials and coatings ( ).Mechanical Loads: Ensure trays can withstand the weight of cables and any additional equipment mounted on them ( ).Integration with Other Systems: Coordinate with HVAC, piping, and structural elements to avoid conflicts. By following these guidelines, DC cable tray installations in factory buildings can achieve safety, efficiency, and long-term reliability, while allowing for future expansion and easy maintenance ( ).
