Installation of Communication Optical Cables and Low-Voltage Cables

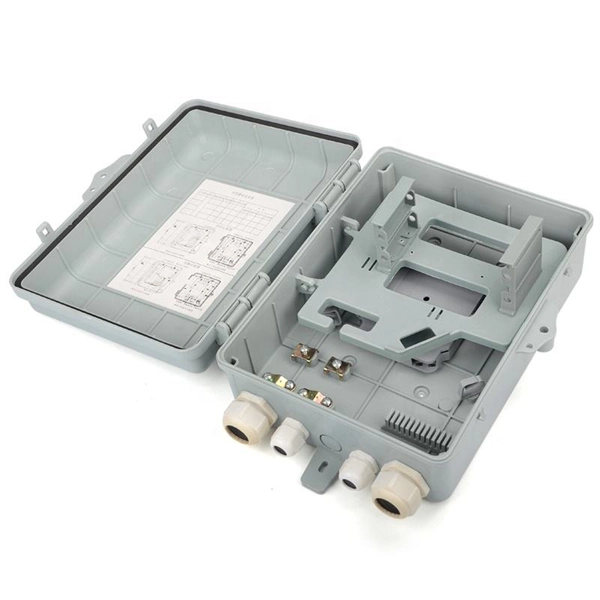

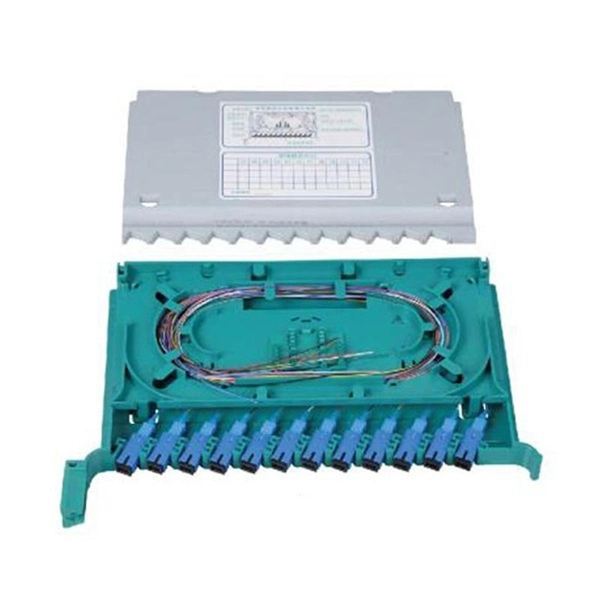

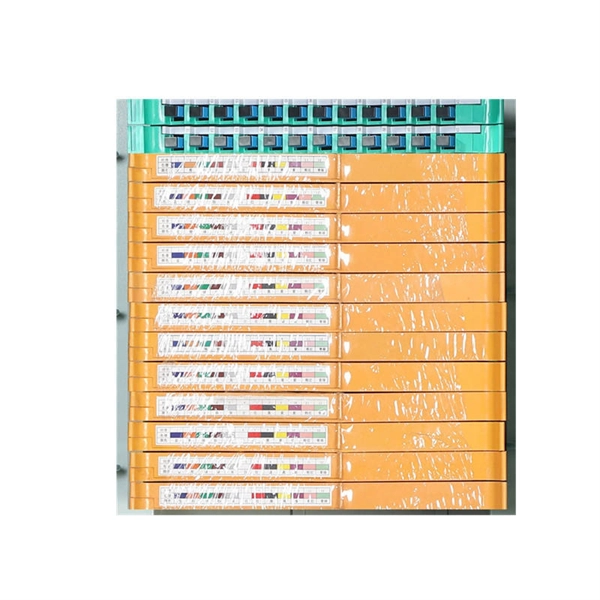

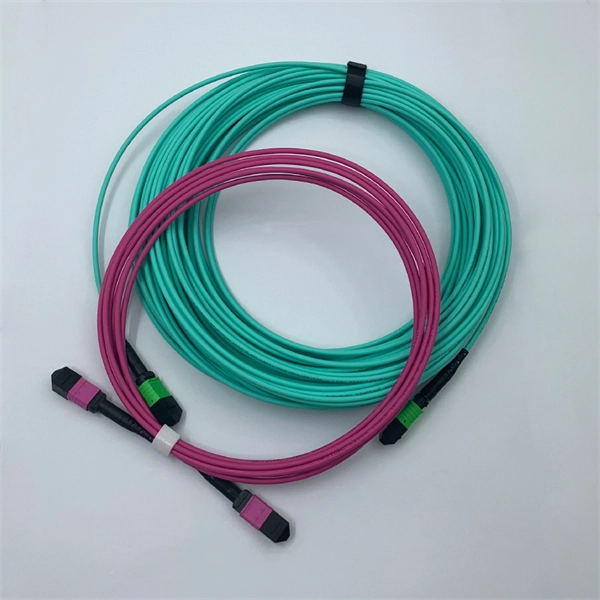

Proper installation of communication optical and low-voltage cables requires adherence to standards such as NEC Article 800, FOA guidelines, IEEE 525, and EU Low Voltage Directive regulations to ensure safety, performance, and compliance.Fiber Optic Cable InstallationStandards and Guidelines: Fiber optic cables must be installed according to the Fiber Optic Association (FOA) standards, which provide guidance on routing, bending radius, pulling tension, and protection against environmental hazards . Key points include:Bend Radius: Maintain minimum bend radius to prevent signal loss or fiber breakage. Typically, 10 times the cable diameter for static installations and 20 times for dynamic installations.Pulling Tension: Avoid exceeding manufacturer-specified tension limits during installation to prevent microbending or macrobending losses.Protection: Use conduits, raceways, or cable trays to protect fibers from mechanical damage, moisture, and UV exposure.Separation: Fiber optic cables should be separated from high-voltage power lines to prevent electromagnetic interference and physical damage.Labeling and Documentation: Properly label all terminations and maintain installation records for maintenance and troubleshooting.Low-Voltage Cable InstallationNEC Compliance: In the United States, low-voltage and communication cables are governed by NEC Article 800 (Communications Systems) and related articles . Key requirements include:Separation from Power Cables: Low-voltage cables must be separated from electric light, power, Class 1, and medium-power circuits unless specifically allowed by code. Separation reduces the risk of interference and fire hazards.Cable Routing: Use approved raceways, conduits, or cable trays. Cables can share pathways if permitted by code and if they are listed for such use.Fire-Resistive Systems: Certain low-voltage cables, such as communications circuit integrity (CI) cables, must meet fire-resistance requirements when installed in fire-rated assemblies.Listing and Labeling: Only use cables listed for their intended application (plenum, riser, general-purpose, or limited-use). Proper labeling ensures compliance and safety.IEEE 525-2007 GuidanceIEEE 525 provides additional guidance for substation and industrial installations, emphasizing:Minimizing Cable Failures: Proper design, installation, and protection to reduce mechanical and electrical stress.Environmental Considerations: Protection against temperature extremes, moisture, and chemical exposure.Routing and Support: Use of cable trays, supports, and separation to prevent physical damage and maintain system reliability .European Union RequirementsIn the EU, low-voltage and communication cables must comply with the Low Voltage Directive (LVD) and harmonized standards such as EN 50525-1 for low-voltage energy cables and EN 50288-1 for multi-element communication cables . Key points include:Voltage Range: LVD applies to cables rated 50–1,000 V AC and 75–1,500 V DC.Testing and Certification: Cables must meet insulation resistance, dielectric strength, and other electrical test requirements.Installation Practices: Follow manufacturer specifications and EU harmonized standards for indoor, outdoor, and aerial installations.Best Practices SummaryMaintain proper separation between communication and power cables.Follow manufacturer specifications for bend radius, pulling tension, and environmental protection.Use approved raceways, conduits, and cable trays for routing.Ensure fire-resistance compliance for cables in fire-rated assemblies.Label and document all cable installations for maintenance and regulatory compliance.Adhere to local and international standards, including NEC, FOA, IEEE, and EU directives.By following these standards and best practices, installations of communication optical and low-voltage cables will achieve safety, reliability, and regulatory compliance across residential, commercial, and industrial applications.
